Need help working with a serial port over Ethernet

Serial Communication
1

I’m trying to access a serial device over Ethernet using a serial-over-IP adapter, but I’m struggling with configuration and reliable communication. I’m not sure which settings (baud rate, TCP vs UDP, virtual COM port drivers, etc.) are correct for my setup, and sometimes the connection drops or data gets corrupted. Can someone walk me through the proper way to set this up and troubleshoot common issues so I can get stable serial communication over my network?

2

You’re basically fighting three separate battles here: serial config, network config, and software behavior. Tackle them one at a time or it’ll drive you nuts.

First, match the serial side exactly to the device: baud, data bits, parity, stop bits, flow control. If you get even one wrong, you’ll see garbage or random timeouts. Check the device manual and hard‑set those in the adapter’s web UI. Disable hardware flow control unless you know you need RTS/CTS. Most simple devices are 9600 8N1 no flow control.

On the Ethernet side:

  1. TCP vs UDP

    • Use TCP for 99% of “normal” serial devices. It’s reliable, ordered, and easier to debug.
    • UDP only makes sense for very latency sensitive streaming where packet loss is acceptable and your software is designed for that. Most people pick UDP then wonder why stuff vanishes.

  2. Connection mode

    • If your PC software expects a COM port, use “virtual COM port” software. The adapter should have a driver or you can use something like Serial to Ethernet Connector, which creates a virtual serial interface that forwards traffic over TCP to the adapter. That avoids half the flaky vendor drivers.
    • On the adapter, use “TCP server” mode usually, then point the virtual COM client to the adapter’s IP and port.

  3. Packing / timeout settings
    Serial servers often have “packetization”, “idle timeout”, or “buffer time” settings.

    • Set Nagle off or use “low latency” mode if available.
    • Lower the inter‑character timeout if messages are getting grouped weirdly or delayed. Something like 10–20 ms is often fine.

  4. Keep‑alives and disconnects

    • Turn on TCP keep‑alive so dead connections get cleaned up.
    • Some devices hate multiple connections. Make sure only one TCP client connects at a time.

  5. Testing

    • Use a dumb serial program on the PC (PuTTY, Tera Term, RealTerm).
    • First, plug directly into the physical serial port (no Ethernet) to confirm your settings actually work.
    • Then swap in the Ethernet adapter with the same serial config and test again.
    • If it fails only when Ethernet is in the mix, you know the serial settings are correct and the issue is in network or virtual COM config.

If you want something that hides all the ugly parts, look at a software bridge like Serial to Ethernet Connector with a virtual COM on your PC that connects via TCP to the adapter. It is usually more stable than the random OEM utilities and gives you more control over how serial data is tunneled over IP.

Also, your phrase “serial port over ethernet” is exactly what people search for, but if you want something clearer for docs or configs, use something like:

Reliable remote access to RS‑232/RS‑485 devices using a serial to IP ethernet adapter

If you need more info on doing this on Windows or Linux, configs, or troubleshooting tips, this page is actually solid:
detailed guide to using serial ports over a TCP or UDP network

Once you lock in serial parameters, run TCP server mode, and use a stable virtual COM client, this stuff usually goes from “why is nothing working” to “it just chugs along for years.”

Need help working with a serial port over Ethernet

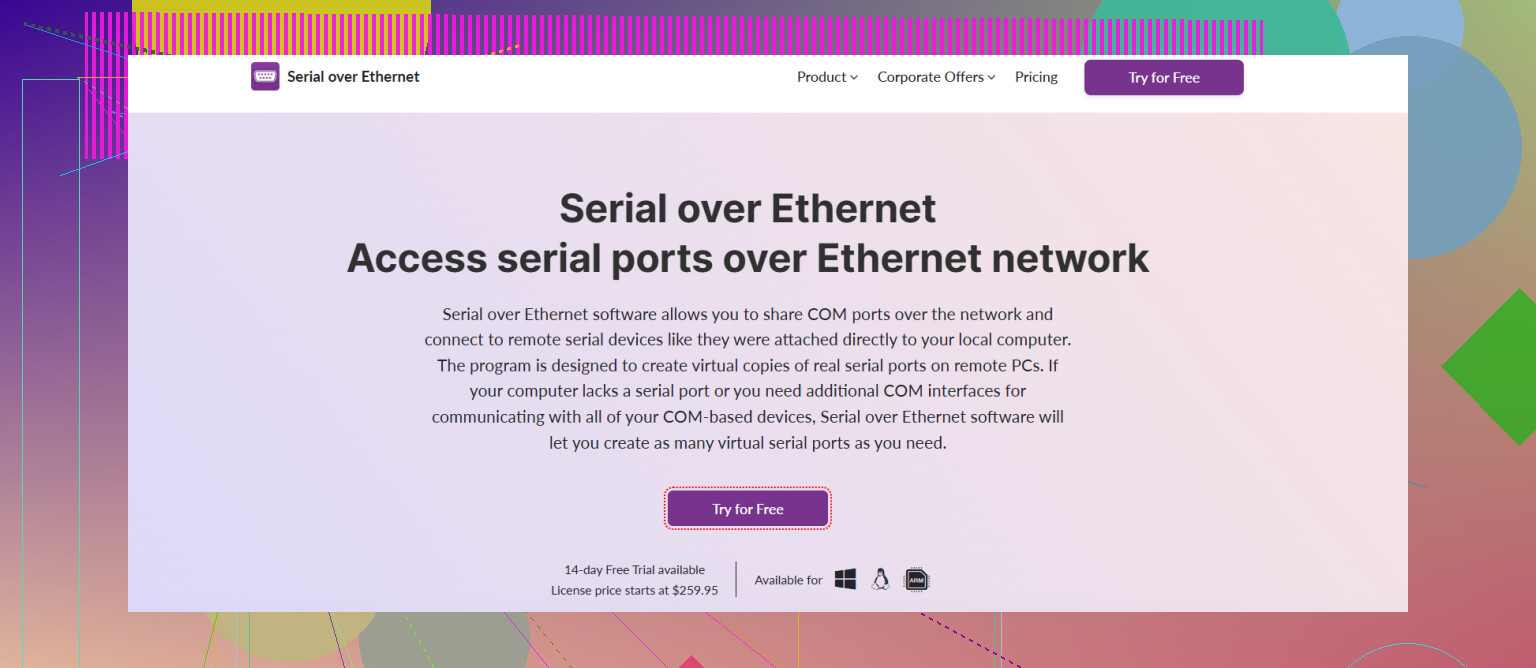

Need help working with a serial port over Ethernet1536×668 172 KB

3

You’re pretty close already, you just need to pin down how you want to talk to the adapter and then stick to that model.

@viajeroceleste covered the “classic” approach really well (match serial params, TCP server, virtual COM, etc). I’ll throw in a slightly different angle and a few traps that bite people:

1. Decide: virtual COM vs direct TCP

This is the big fork in the road.

Virtual COM port approach
Good when:

  • You have old software that only knows COM1 / COM2
  • You don’t want to touch the application code

Bad when:

  • Your app opens/closes the port constantly
  • You have high‑latency or flaky networks
  • Multiple PCs might try to “share” the same serial port

Virtual COM layers can get weird with timeouts and reconnections. If you stick with it, use something solid like Serial to Ethernet Connector instead of some random vendor tool. It works as a stable bridge that exposes a local COM port while tunneling everything over TCP.

The nice part: you can grab it here if you want to experiment with a cleaner driver setup:
reliable Serial to Ethernet Connector downloads

Direct TCP approach
If you control the software, consider skipping the virtual COM entirely and:

  • Put the adapter in TCP server mode on a fixed port (e.g. 5020)
  • In your app, open a raw TCP socket to adapter_ip:port
  • Treat the socket like a serial stream

This usually ends up more reliable and predictable than virtual COM, especially over WAN/VPN.

I actually disagree a bit with the “99% use TCP” idea: it’s right for most people, but if your device is pumping out one‑way telemetry and you’re just logging, UDP can be simpler and more tolerant of short drops. Just not for request/response style protocols.

2. Watch out for half‑open / zombie connections

A classic “it works once then never again” problem:

  • Your PC or app crashes or sleeps
  • The adapter still thinks the TCP session is alive
  • Next connection attempt gets refused or hangs

Mitigations:

  • Enable TCP keepalive on both sides if possible
  • Shorten idle timeout on the adapter
  • Some adapters have “disconnect on inactivity” or “max session time” settings; turn those on with sane values

If your device only allows a single TCP client, verify you literally have only one piece of software connected. I’ve seen people run a terminal program and their main app at the same time and then chase ghosts for days.

3. Byte framing and protocol expectations

Matching baud/parity/stop is not enough if the protocol is picky.

Check if your device:

  • Needs CR, LF, or CRLF line endings
  • Uses binary frames with checksums
  • Expects fixed‑length messages or delimiter‑based messages

Some serial‑to‑IP boxes have “packet length”, “delimiter” or “character timeout” settings that can mangle this if misconfigured. If your protocol is binary and not line‑based, avoid any “delimiter” mode and stick to pure “transparent” or “raw” mode.

If your messages are short command/response, you might actually want a slightly higher idle timeout so a single logical message doesn’t get split into multiple network packets at awkward boundaries.

4. Latency and buffering problems

If you see:

  • Data arriving in big bursts rather than “live”
  • Delays between keystrokes and device responses

Look at:

  • Any “Nagle”, “low‑latency”, “packing interval” options on the adapter
  • Your virtual COM settings if you use one (some have “buffer until X bytes or Y ms” kind of thing)

For most control protocols, smaller buffers and shorter timeouts are better. For heavy continuous streaming, slightly higher thresholds reduce overhead, but don’t go wild.

5. A dead simple test plan that actually isolates the problem

Instead of flipping settings randomly:

  1. Get it working locally with a direct serial cable and a terminal app. Confirm exact settings and protocol (line endings etc).
  2. Insert the adapter, connect via raw TCP using something like telnet adapter_ip port or a TCP client tool, no virtual COM yet. Check if you can still talk.
  3. Only after TCP raw mode works perfectly, add the virtual COM layer if you really need it.

If step 2 is flaky but 1 is fine, the issue is in the adapter or network. If 2 is solid and 3 breaks, your virtual COM or driver setup is the culprit.

If you can share which exact adapter model, OS, and what software you’re using to talk to the port, people can usually point at the one weird checkbox that’s killing your connection.

4

You already got the “how to wire it up” from @voyageurdubois and @viajeroceleste, so I’ll zoom in on stability and failure modes, which is where these gateways usually bite people.

1. Clarify who is “master” and who is “client”

People often misconfigure this and then chase ghosts.

  • If your PC software is the thing that initiates communication, then:
    • Adapter should be TCP server.
    • PC side is TCP client (either your app directly, or virtual COM software).
  • If your serial device periodically phones home, then:
    • Adapter might need to be TCP client.
    • PC side listens as a TCP server.

Double‑check this; getting it backwards “sort of works” during tests and then fails in real use.

I actually disagree a bit with the idea that TCP server on the adapter is always the default. Some industrial devices are happier if the gateway pushes out to a fixed logging server, especially across NAT or VPN.

2. Don’t let DHCP ruin your day

You can have everything perfect and still lose the device once the lease expires.

  • Give the adapter a static IP or a DHCP reservation.
  • Use that IP and port in your virtual COM or app.
  • If your network is managed by someone else, confirm they are not moving you between VLANs or applying weird firewall rules to “non‑standard” ports.

If the connection “randomly dies every few hours or days,” IP changes or ARP issues are very common culprits.

3. Check for serial side signal issues, not just settings

Even if baud / parity / stop bits match, you can still get flaky behavior from:

  • Long or cheap RS‑232 cables introducing noise.
  • RS‑485/RS‑422 line not properly terminated or biased.
  • Missing common ground between adapter and device.

Symptoms look like “it works for a while, then random garbage.” Before you fight with TCP vs UDP, make sure the electrical side is actually solid. A quick test with a direct serial connection from PC confirms baseline behavior.

4. Logging is your best friend

Both on the network side and serial side:

  • Pick a serial server / virtual COM solution that has detailed logging of:
    • Connect / disconnect events
    • TX / RX bytes
    • Errors / retries

This is one place where using something like Serial to Ethernet Connector can help, because you can see exactly when the TCP session drops, when the COM port is reopened, and what the OS thinks is happening.

Pros of Serial to Ethernet Connector:

  • Solid virtual COM implementation that tends to behave better than many OEM tools.
  • Detailed logging and options for reconnect behavior and access control.
  • Flexible topology: one PC to one device, or more complex setups if your protocol allows.

Cons of Serial to Ethernet Connector:

  • Extra software layer means one more thing to install, maintain, and patch.
  • Not ideal if you want a minimal stack; if you can code to raw TCP directly, that can be simpler.
  • Licensing cost can be a factor compared to the free manufacturer utility, especially for many endpoints.

If you can tolerate development, talking straight TCP from your app is simpler than adding any virtual COM, including Serial to Ethernet Connector. But if your software absolutely demands COM ports, it is usually a more predictable choice than many vendor drivers.

5. Beware of “smart” features in the adapter

A bunch of serial‑over‑IP boxes have features that quietly break things:

  • “Protocol aware” modes for Modbus, SLIP, or proprietary framing.
  • Line ending conversion (LF to CRLF, etc).
  • Auto‑reply or trigger actions based on patterns.

Turn all that off and keep it in transparent or raw mode unless you are 100% sure your protocol needs it. Those helpers can reframe or alter data just enough to make your application misbehave.

6. Reasonable timeout strategy

Combine both earlier replies with some practical rules:

  • Serial device that expects quick responses:
    • Short TCP idle timeouts, but not too aggressive.
    • Moderate serial character timeouts so complete frames stay together.
  • Telemetry / logging device:
    • Longer TCP idle timeout.
    • Avoid overly aggressive reconnect logic, or you will hammer the device.

Make sure your application timeouts align with what the adapter and any virtual COM layer are doing. Hidden double timeouts cause “mystery” disconnects.

7. Choosing the approach

Summing up the three main paths:

  1. Legacy app, cannot be changed

    • Adapter: TCP server.
    • PC: virtual COM client using something like Serial to Ethernet Connector.
    • Keep serial mode raw, disable fancy features, and set static IP.

  2. You control the app

    • Adapter: TCP server.
    • PC: app opens raw TCP socket.
    • No virtual COM at all, you manually handle reconnects and framing.

  3. Device needs to initiate

    • Adapter: TCP client mode.
    • PC: listens on a known port, app or Serial to Ethernet Connector attached on that side.

Between what @voyageurdubois and @viajeroceleste already outlined and the above, you should be able to pin the problem to one layer: electrical, serial config, adapter mode, network, or virtual COM. If you post the exact adapter model and OS, it usually boils down to one checkbox that needs flipping.
